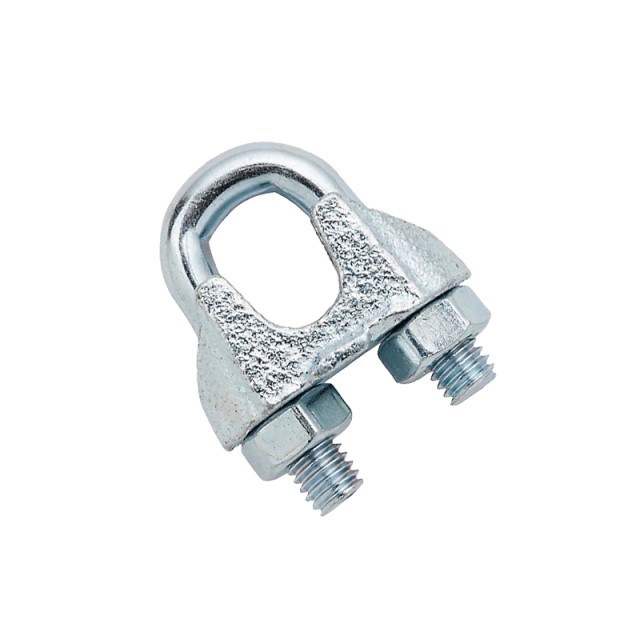

Rigging Equipment / Wire Clamps / COMWRC24 24mm - Commercial Wirerope Clamp

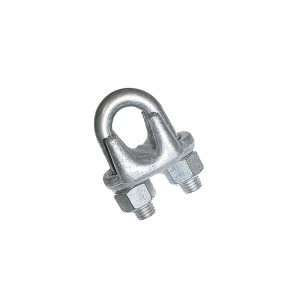

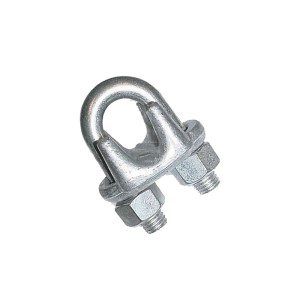

A wire rope clip, sometimes called a u-bolt clamp or u-bolt clip is used
to clamp the loose end of a length of wire rope, once it has been
looped back to form an eye. These fittings consist of a u-bolt and has a
saddle secured by two nuts. Generally, wire rope assemblies need at
least two or three wire rope clips to secure the ends properly to the
length of the rope.
| Diameter Wire Rope Clamps | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| 3mm - Wire Ropes Clamp | 4mm | 20mm | 9mm | 12mm | 21mm | 10mm | 10mm |
| 4mm - Wire Ropes Clamp | 4mm | 22mm | 10mm | 13mm | 22mm | 11mm | 10mm |
| 5mm - Wire Ropes Clamp | 5mm | 24mm | 11mm | 13mm | 23mm | 11mm | 10mm |
| 6mm - Wire Ropes Clamp | 5mm | 28mm | 13mm | 15mm | 26mm | 12mm | 11mm |
| 8mm - Wire Ropes Clamp | 6mm | 34mm | 16mm | 19mm | 30mm | 14mm | 15mm |
| 10mm - Wire Ropes Clamp | 8mm | 42mm | 19mm | 22mm | 34mm | 18mm | 17mm |
| 12mm - Wire Ropes Clamp | 8mm | 44mm | 20mm | 22mm | 36mm | 19mm | 18mm |
| 13mm - Wire Ropes Clamp | 10mm | 55mm | 24mm | 30mm | 42mm | 23mm | 21mm |
| 14mm - Wire Ropes Clamp | 10mm | 57mm | 25mm | 30mm | 44mm | 32mm | 22mm |
| 16mm - Wire Ropes Clamp | 12mm | 63mm | 29mm | 33mm | 50mm | 26mm | 26mm |
| 20mm - Wire Ropes Clamp | 12mm | 75mm | 32mm | 38mm | 54mm | 29mm | 30mm |
| 22mm - Wire Ropes Clamp | 14mm | 85mm | 37mm | 44mm | 61mm | 33mm | 34mm |
| 24mm - Wire Ropes Clamp | 14mm | 88mm | 39mm | 45mm | 63mm | 33mm | 35mm |
| 26mm - Wire Ropes Clamp | 14mm | 95mm | 41mm | 45mm | 65mm | 35mm | 37mm |
