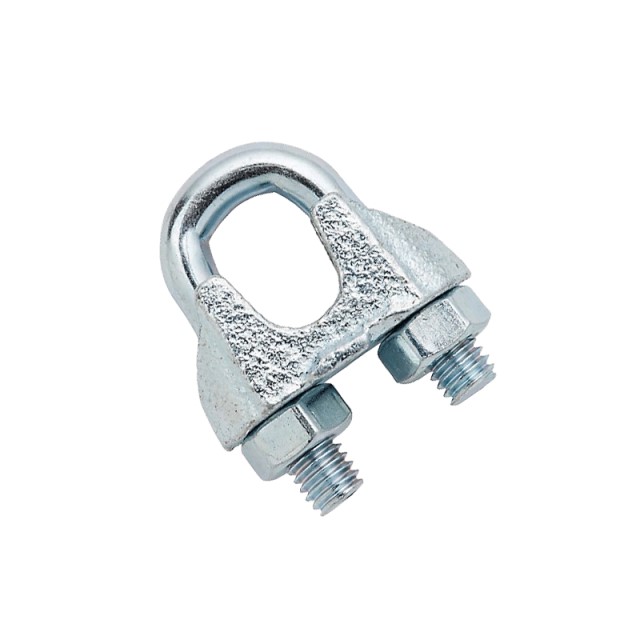

Rigging Equipment / Wire Clamps / COMWRC20 20mm - Commercial Wirerope Clamp

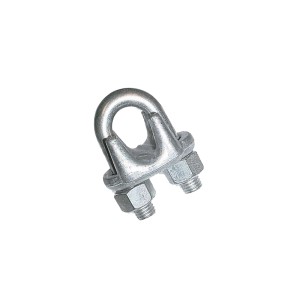

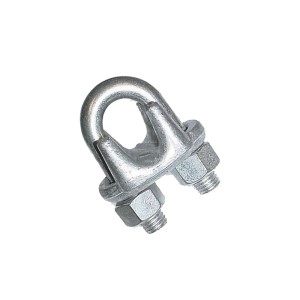

A wire rope clip, sometimes called a u-bolt clamp or u-bolt clip is used
to clamp the loose end of a length of wire rope, once it has been
looped back to form an eye. These fittings consist of a u-bolt and has a
saddle secured by two nuts. Generally, wire rope assemblies need at
least two or three wire rope clips to secure the ends properly to the
length of the rope.
| Diameter Wire Rope Clamps | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| 3mm - Wire Ropes Clamp | 4mm | 20mm | 9mm | 12mm | 21mm | 10mm | 10mm |
| 4mm - Wire Ropes Clamp | 4mm | 22mm | 10mm | 13mm | 22mm | 11mm | 10mm |
| 5mm - Wire Ropes Clamp | 5mm | 24mm | 11mm | 13mm | 23mm | 11mm | 10mm |
| 6mm - Wire Ropes Clamp | 5mm | 28mm | 13mm | 15mm | 26mm | 12mm | 11mm |
| 8mm - Wire Ropes Clamp | 6mm | 34mm | 16mm | 19mm | 30mm | 14mm | 15mm |
| 10mm - Wire Ropes Clamp | 8mm | 42mm | 19mm | 22mm | 34mm | 18mm | 17mm |
| 12mm - Wire Ropes Clamp | 8mm | 44mm | 20mm | 22mm | 36mm | 19mm | 18mm |
| 13mm - Wire Ropes Clamp | 10mm | 55mm | 24mm | 30mm | 42mm | 23mm | 21mm |
| 14mm - Wire Ropes Clamp | 10mm | 57mm | 25mm | 30mm | 44mm | 32mm | 22mm |
| 16mm - Wire Ropes Clamp | 12mm | 63mm | 29mm | 33mm | 50mm | 26mm | 26mm |
| 20mm - Wire Ropes Clamp | 12mm | 75mm | 32mm | 38mm | 54mm | 29mm | 30mm |
| 22mm - Wire Ropes Clamp | 14mm | 85mm | 37mm | 44mm | 61mm | 33mm | 34mm |
| 24mm - Wire Ropes Clamp | 14mm | 88mm | 39mm | 45mm | 63mm | 33mm | 35mm |
| 26mm - Wire Ropes Clamp | 14mm | 95mm | 41mm | 45mm | 65mm | 35mm | 37mm |
Great Value!
15% VAT included in all prices.
Delivery in Walvis Bay and Swakopmund is Free of Charge.
Delivery charges are not included to areas outside of Walvis Bay, Namibia.
Quotation are only valid for 7 Days.
